Description - why do we need this switch?
There may be times where you'd want to use a common sound card with two different radios for digital
applications. This switch allows you to easily select a common source (modem / sound card) between
two radios. All signals are switched from the input to the outputs. There is no chance of feedback,

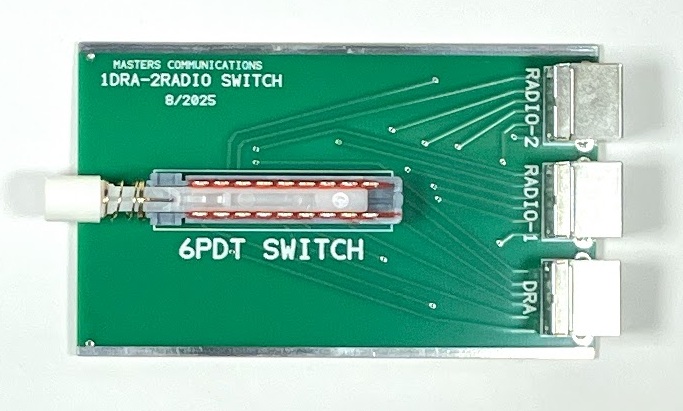

or signal level change due to parallel connections. A high quality 6-pole double throw positive
locking push-button switch is used to make the choice. This switch has silver plated contacts for high

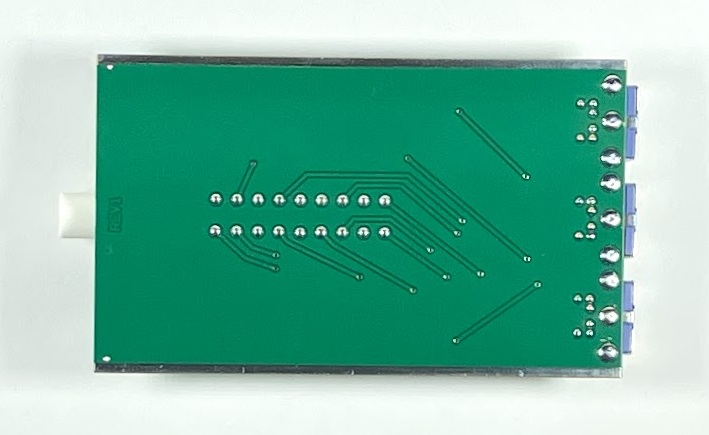

reliability, and switches all six signal lines - including ground. The shield connections are tied
together and to a common ground plane.
The switch is completely passive and requires no power source.
This switch is designed for a DRA, modem, sound card and two radios with female Mini-DIN-6 connectors, and uses our DIN6-Shortie or DRAC-12 cables to make the connections between devices.
While not expressly designed to do so, nothing prevents using the switch to select between two sources and one radio. You simply connect the switch in reverse where the two sources connect to the two "radio" ports and the radio connects to the "DRA" port. Because the switch is a passive device - there is no defined direction of signal flow. It is simply connected - or not. Of course - a mixer might be a better choice in this case, and I have a few to choose from.
Operation:

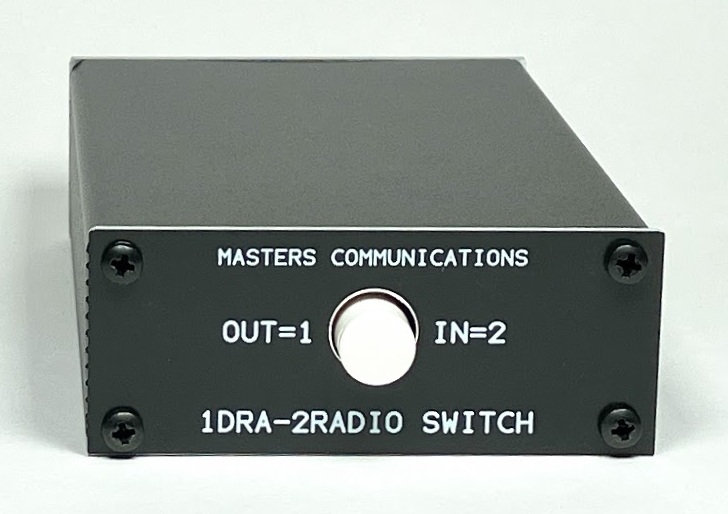

When the switch is in the normal "out" position, RADIO 1 is selected and connected to the DRA port.
When the button is depressed, it will lock into the depressed position where the DRA is connected to
RADIO 2. Simply depressing the button again releases the switch back to the RADIO 1 selection.
The position is easily detected by how much of the push button is exposed.
About the audio inputs and outputs.

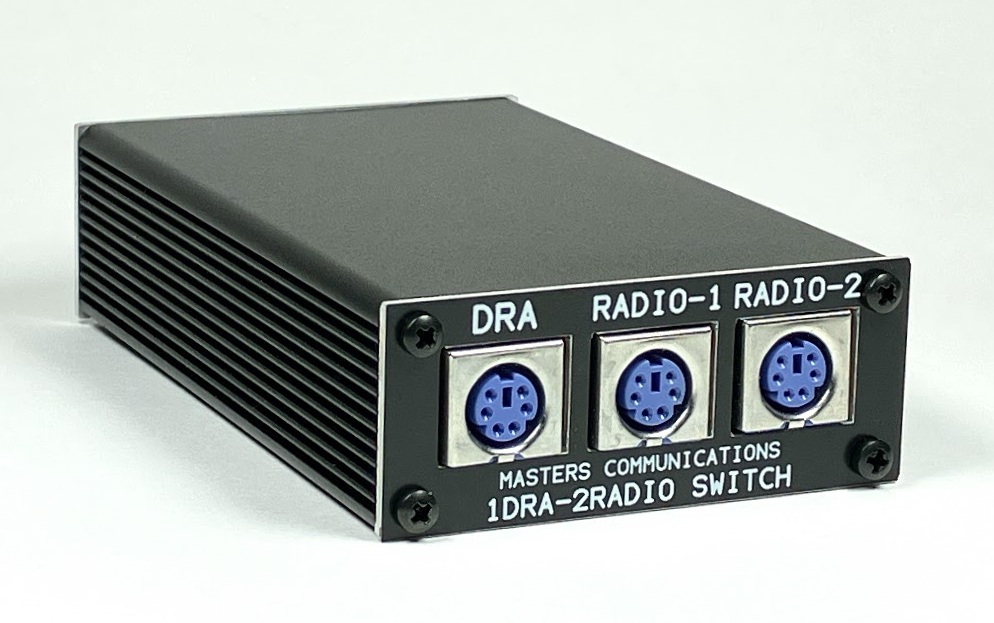

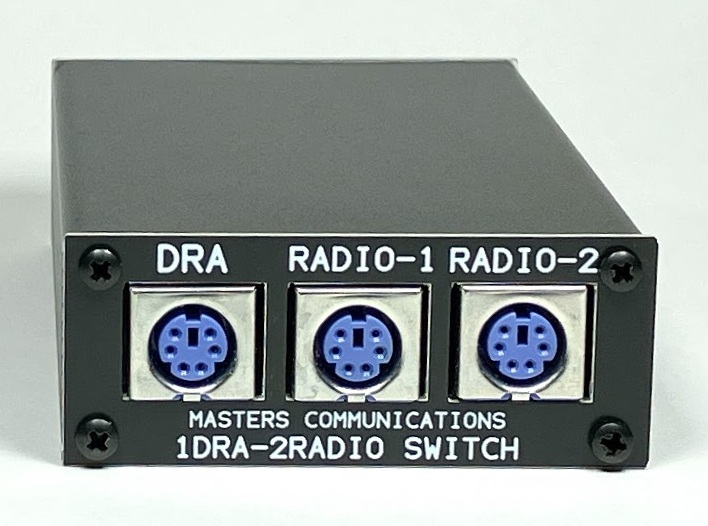

All inputs / outputs are Mini-DIN-6 female connections and are completely isolated from one
another - depending on actual switch position.
Features:
 |
High quality 6PDT switch with silver plated contacts. |
|
All 6 signal paths are switched - no chance of feedback or interaction. |
|
3 - Mini-DIN-6 female connectors. |
|
Requires no source of power - completely passive - bi-directional. |
|
Kit is okay for the first time builder - only 4 components. |
|
Kit is supplied with all components ready to solder onto the board and a metal case of your color choice (Black, Blue, or Red). |
|
Available Assembled and Tested for a small additional cost. |
Choose selection carefully!
DRA-Switch Unassembled Kit with Black, Blue or Red Metal Case
DRA-Switch Assembled & Tested with Black, Blue or Red Metal Case
Add a 3 foot DIN6-Shortie Radio Cable
Add a 6 foot DRAC-12 Radio Cable
Support Documentation:
Support Documentation Parts list,
installation and set-up instructions for the DRA-Switch.
DRA-Switch Construction Article
Email Kevin Custer for ordering information, ordering by check, and/or support of this exciting product.
